Davey DynaDrive™ Constant Pressure System
The latest constant pressure system that is energy efficient and quiet, has an integrated pressure controller and easy to use.
DynaDrive™ is Davey Water Product’s latest all-in-one home pressure system, with a variable speed drive that maintains water pressure at a fixed point regardless of an increase or decrease in water demand in the household. Enjoy consistent water pressure with DynaDrive.
The number of taps being used in your home doesn’t impact your water pressure or flow, with DynaDrive keeping pressure constant and steady. As taps are turned off, the drive adjusts automatically, keeping the pressure constant while saving energy.
DynaDrive features an integrated controller that is easy to set up and use. It allows you to set your desired water pressure while also being energy efficient. How, by reducing the pressure on your system when it’s not needed, DynaDrive reduces the energy consumed, saving you money.

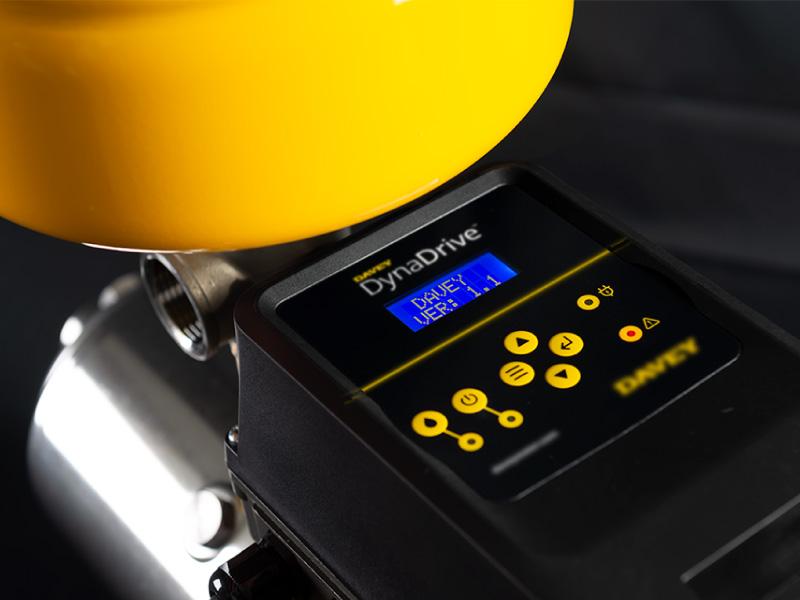

With DynaDrive water pressure can be set where you want with an easy to set up and use controller that comes with an intelligent interface and compact design. The controller also gives you warnings for any system faults and lets you daisy chain two pumps in parallel if needed.
The stainless-steel impellers in the DynaDrive also offer reduced power consumption and low noise output, which makes for quiet pump operation, and increased wear resistance.
The system comes with a Davey built, totally enclosed fan cooled (TEFC) electric motor, that ensures longer life for the pressure system and easy service, while also being economical. DynaDrive is noticeably more quiet than other models and more responsive compared to other traditional pressure controllers.
Advice. Products. Solutions. Locally source and buy Davey DynaDrive from Cobram Irrigation your local Irrigear® Independent Experts — the leaders in pumping, irrigation, filtration, water and fluid management.
Why choose the Davey DynaDrive Constant Pressure System?
- Horizontal multistage centrifugal pump with all hydraulic parts in stainless steel
- Stainless steel impellers with high efficiency impeller profile & thick self-centring impeller neck rings for
- Air purging valve & stage porting
- Impellers mounted directly on extended motor shaft
- Pump casing assembly attached to motor bracket at 8 points with o-ring seal
- Davey built, totally enclosed fan cooled (TEFC) electric motor
Davey DynaDrive Constant Pressure System
Davey DynaDrive Highlights
Davey DynaDrive is our latest all-in-one home pressure system to solve water pressure issues. As a constant pressure pump, the variable speed drive maintains water pressure at a fixed point regardless of an increase or decrease in water demand for your household.
DynaDrive features an integrated controller that is easy to set up and use. It allows you to set your desired water pressure while also being energy efficient. By reducing the pressure on your system when it's not needed, DynaDrive reduces the energy consumed, saving you money.
DynaDrive has been certified and tested to comply with the requirements of the AS/NZS 4020 standard. The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.
With DynaDrive you can expect:
- Constant pressure when another tap is turned on
- Smooth and quiet flow
- Reduction in water hammer
- Reduced operating costs
- Quiet pump operation
- Does not release cytotoxic or mutagenic compounds or metals into the water
Davey DynaDrive Technical Information

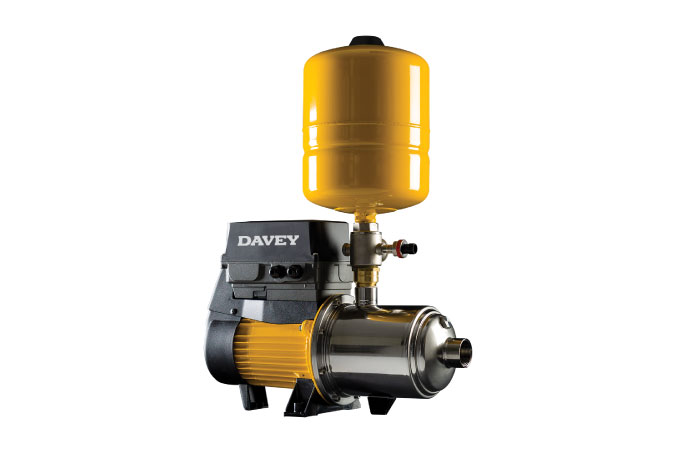

Davey DynaDrive is a Horizontal multistage centrifugal pump with all hydraulic parts in stainless-steel - suitable for high water temperatures, corrosion and wear resistant, compact design and easy to install.
Models in the range include:
Davey DynaDrive DD60-10 - max. flow up to 85 lpm
Davey DynaDrive DD90-11 - max. flow up to 125 lpm
Stainless-steel impellers with high efficiency impeller profile and thick self-centring impeller neck rings for:
- High efficiency
- Reduced power consumption
- Low noise output
- Air purging valve & stage porting:
- Easier priming
- Less susceptible to air leaks
- Improved dependability
- Impellers mounted directly on extended motor shaft:
- Maximise performance per stage
- High efficiency
- Long motor and pump life
- Increased wear resistance
- Pump casing assembly attached to motor bracket at 8 points with o-ring seal:
- Complete stainless casing
- Better sealing
- Longer service life
- Davey built, totally enclosed fan cooled (TFEC) electric motor:
- Sealed and greased for life motor bearings
- Oversized drive bearing
- Longer life
- Easy service
- Economical & quiet running
- Warning indication for system faults
- Adjustable pressure settings
- Constant pressure at high flow rates
- Loss of prime protection
- Capable of daisy chain applications of two pumps in parallel
- Easy service
- Economical & quiet running
Depend on Davey.
For nearly 90 years, Davey has been manufacturing products that create perfect water pressure, healthy drinking water, protection from fire and flood, a clean, relaxing pool or spa, or water to run your farm or business. You can Depend on Davey for the right solution. A market leader in Australia, Davey also exports to over 50 countries where our products perform in some of the harshest environments.
Davey products are used in some of the world’s toughest conditions, which is why they are built with dependability and reliability at their core. Traditionally servicing the domestic water pumping, water treatment, and swimming pool and spa markets, Davey has recently expanded its focus and product portfolio to include the commercial pumping, irrigation, and commercial pool markets. As Australia’s leading brand, Davey is committed to keeping our communities safe and protected – especially those who rely on our products day in and day out. You can Depend on Davey.
Talk to the team at Cobram Irrigation a member of Irrigear® Independent Experts to find out more about Davey DynaDrive™ Constant Pressure System as well as other water management solutions from Davey Water.
