Netafim ScreenGuard™ Irrigation Filters
You'll find the range of ScreenGuard™ at Cobram Pumping & Irrigation (CPI).
ScreenGuard – Bigger. Tougher. Better.
Groundwater or harsh water can pose a real challenge to the efficient operation of your irrigation system, and the productivity of your investment. Thanks to its industry-leading filtration area and low back-flush cycle, Netafim's ScreenGuard automatic, semi-automatic and manual filters ensure uncompromised filtration, uniform flow, uniformity and higher yields over the long-term, while significantly lowering your filtration operating costs.
- ScreenGuard Automatic
- ScreenGuard Semi-automatic

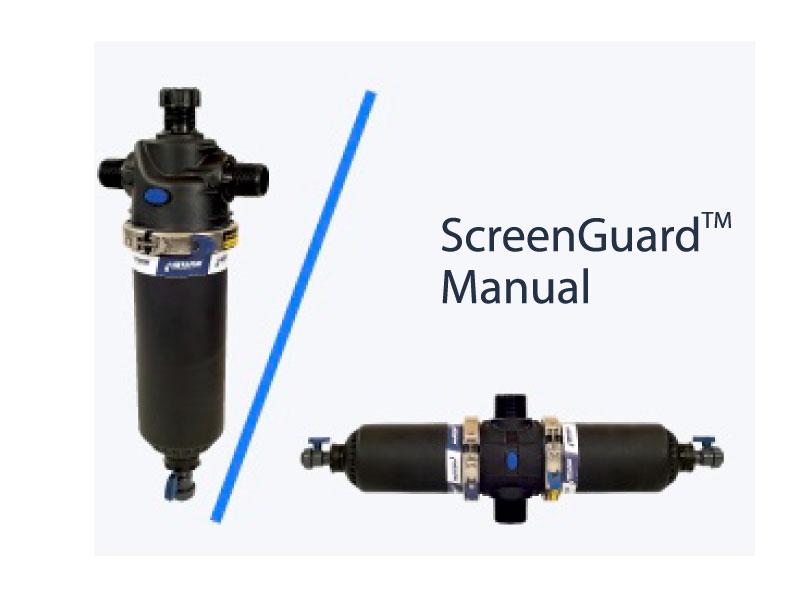

- ScreenGuard Manual
ScreenGuard – Your first line of defense in protecting your irrigation system.
- Bigger. Tougher. Better. Largest, toughest and most robust filtration in the industry
- Grow With Confidence. Peace of mind knowing that your irrigation system is running at maximum efficiency
- Less Costly Maintenance. With low back-flush cycles you save costs on routine cleaning and maintenance
- Designed Around You. From 4" to 10" and a range of mesh rating screens you're sure to find the filter that suits your needs
- Plug & Play. Filters arrive fully assembled keeping installation & set-up costs to a minimum
- Built to Perform. High quality materials and components designed for maximum efficiency and lifespan
Advice. Products. Solutions. Locally source and buy Netafim ScreenGuard™ Irrigation Filters and other Netafim precision irrigation products and solutions from the leaders in pumping, irrigation, filtration, water and fluid management – Cobram Pumping & Irrigation.
Netafim ScreenGuard™
Netafim ScreenGuard Features & Benefits
Groundwater or harsh water can pose a real challenge to the operation of your irrigation system. Screenguard was designed with the largest filtration area in the industry. A bigger screen means less cleaning cycles and enhanced system longevity. Screenguard offers uncompromized filtration operation with the most efficient self cleaning mechanism saving you labor and protecting your irrigation system.
- Extremely large screen size allows the filter to work with higher flow rates & deal with harsh water conditions
- Filter body is made from high quality carbon steel with two-layers coating, offering superb corrosion resistance
- Cover & piston made from durable non-corrosive materials for easy and cost-effective maintenance
- The filter screen cylinder is molded with stainless-steel 316 screen incorporating a special weave, providing an extra layer of protection to the irrigation system
- Two different models, Horizontal and Vertical, with multiple filtration area options covering a wide range of flow rates, ensures a perfect fit for different water quality and protection requirements
- BT (Bluetooth) controller activated with Netafim SG App allows better control of filter performance
- Multiple connection types that fit perfectly with any irrigation system
- Different micron rating screens suited for variety of applications
Netafim ScreenGuard Applications
Screen filters are highly recommended for irrigation using poor quality water, for heavy-duty usage, and in the following conditions:
- Primary filtration for use with well water and/or single use dripperline applications in multiple water sources
- Primary filtration for micro & open field sprinkler applications in multiple water sources
- Primary filtration for landscaping applications
Netafim ScreenGuard™ Automatic Filter is bluetooth activated with the Netafim SG app for better control of filter performance. Available for both Apple IOS and Android.
- Minimum Operating Pressure: 29 psi
- Maximum Operating Pressure: 145 psi
- Maximum Water Temperature:149˚ F (65˚ C)
- Connection Type: Flanged
- Screen Mesh Sizes: 080, 120, 150, 200
- Sizes: 4”, 4” Super, 6”, 6” Super 8” and 10”
- Control Voltage: DC Latching
- Filter Housing: 2-layer carbon steel coating
- A coarse screen protects the finer screen from large particles and it can be periodically cleaned manually.
- Automatic flushing of the fine screen is activated once the pressure differential in the filter reaches a pre-determined value. During the flushing cycle, the backflush valve opens, pressure is released from the piston and debris laden water is discharged through the backflush valve.
- Pressure in the hydraulic motor chamber and the dirt collector is significantly lowered causing the dirt collection nozzles to move along and rotate cleaning the whole internal screen surface. The flushing cycle takes 5 seconds.
- The backflush valve closes at the end of the cycle, pressure is reapplied, moving the nozzles back to their resting position and the filter is cleaned. During the whole process, water supply is uninterrupted.
See the video below for further details.
Irrigation Services & Solutions
Netafim has been a leader in global agricultural development since its inception in 1965. Always growing and diversifying, Netafim integrates down-to-earth rural values with cutting-edge agricultural and technological expertise to lead the way in smart drip and micro-irrigation solutions worldwide.
Talk to Cobram Pumping & Irrigation (CPI) and find out more about Netafim ScreenGuard and other Netafim precision irrigation products, parts and solutions which are right for your irrigation or water management project.
